WTS DHQ Geophysical Borehole Logging Equipment
WTS DHQ is a new generation Geophysical Borehole Logging system ,offers the unique combination of high performance, ruggedness, portable and ease of use appreciated by many logging operators. Borehole geophysical logging methods are used to measure physical properties of geological material around the borehole, borehole fluid properties, and the integrity of well construction materials .Our wide range of geophysical logging tools have been demonstrated in a wide variety of geological environments and have proven useful in geological interpretations & an exploration. Geophysical logs derived from this equipment shall provide petrophysical property information important to exploration geophysicists, geologists, mine managers, and multi-disciplinary professionals involved in exploration.
Function:
- '16'Short Normal Resistivity
- '64' Long Normal Resistvity
- Natural Gamma
- Temperature
- SP/SPR
- Caliper
- Sonic
- Density
- Neutron
Configuration:
Application:
- Hydrological Water Well Logging.
- Coal Well Logging.
- Oil & Gas Well Logging.
- Geothermal well Logging.
- Solid Metal Ore Well Logging.
- Construction Engineering Well Logging.
- Other Well Logging.
Software Analysis:
Natural Gamma , Res & SP Graphs
Lithology vs Natural gamma , Sp & Res Graphs
Features:
Specifications:

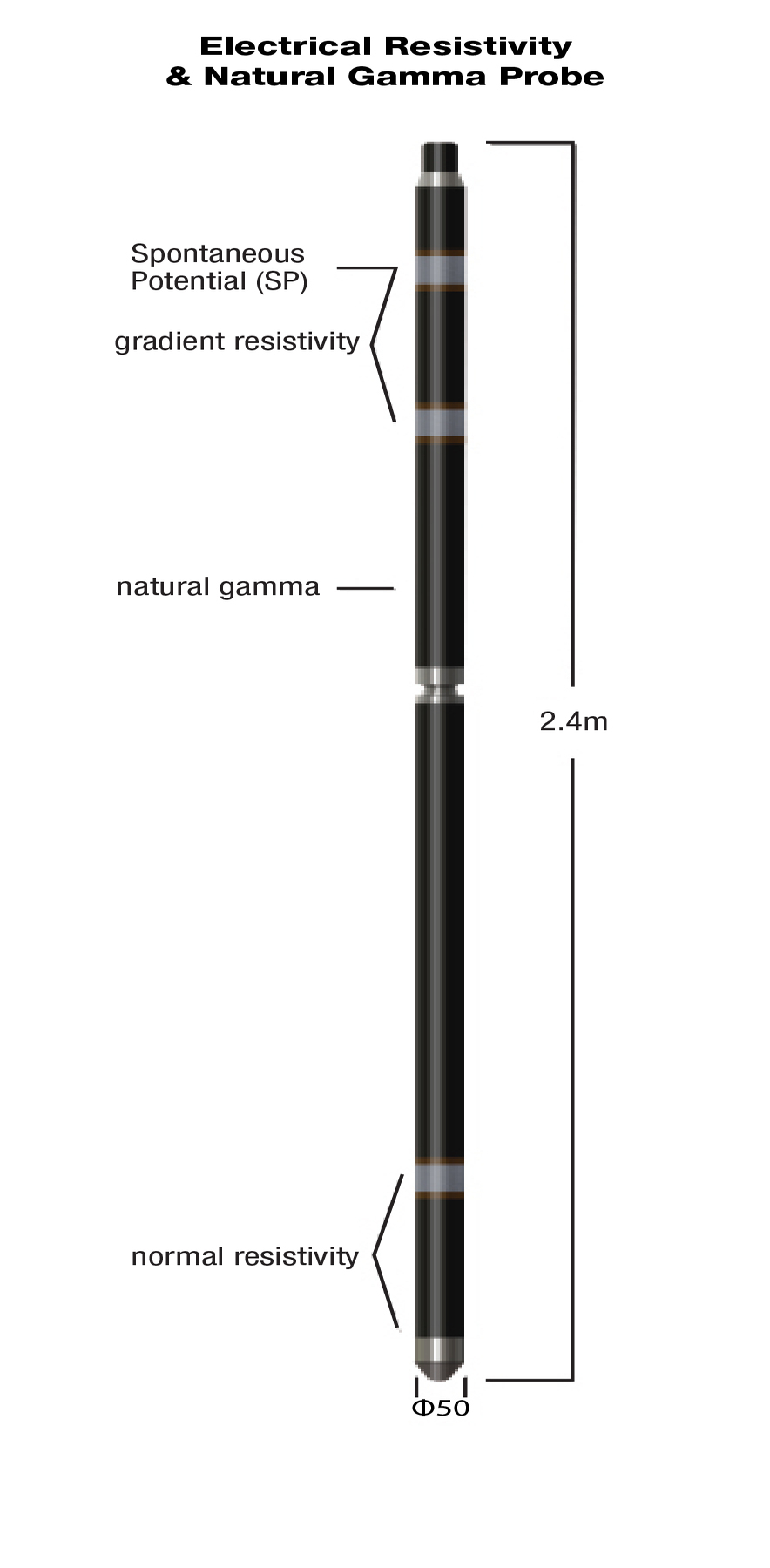

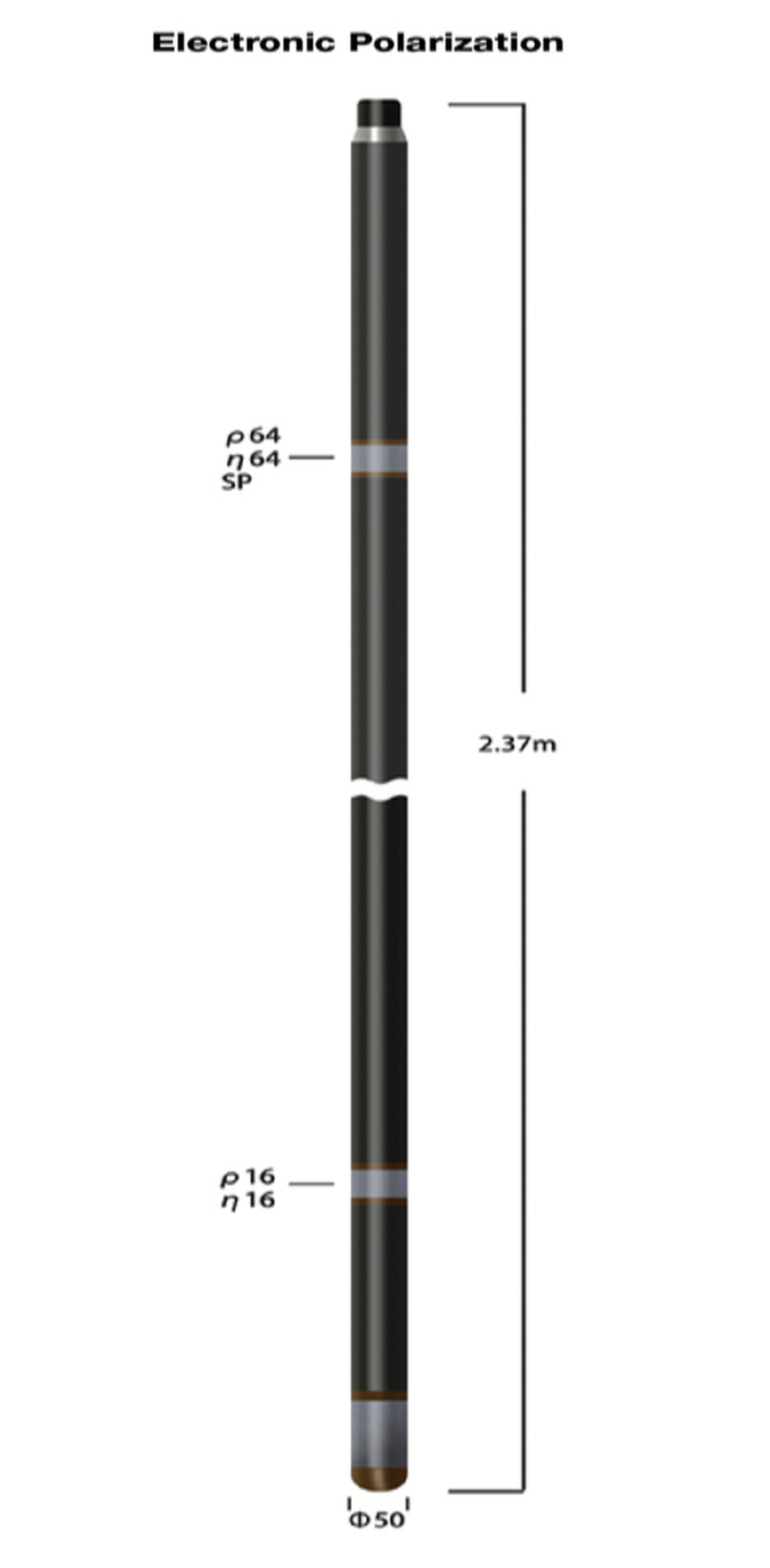

| Data Acquisition System | |
| Operating environment | Power：220V, 50Hz Temperature: -10℃~ +50℃ Humidity: ≤ 90% |
| Depth Counter System | Depth range: 0-9999.99m Resolution ratio: 0.28mm Speed Range: 0-9999m/h Optical pulse: 3600 pulse/m |
| Signal transmitting system | Down hole Signal: Bipolar encoding Communication: RS232 or USB |
| Figure out the depth of the graph | 1:10, 1:50,1:100, 1:200, 1:500 etc. |
| The drawing accuracy | 8 points per millimeter (curve) ； 64 pixels per square millimeter (image method) |
| Borehole Probes ( Sensor) | |
| Diameter | Φ40 and Φ50 mm |
| Length | 000~1500mm |
| Material | stainless steel |
| Resistance | 20~40 MPa water pressure |
| Temperature | Max 70 ~ 90 ℃. Special orders can be 60 MPa water pressure resistance, temperature 120 ℃ resistance. |
| Probe Series | |
| Resistivity probe | SP,Apparent Resistivity |
| Resistivity & Gamma Probe | SP,Apparent Resistivity, Natural Gamma |
| Combined Probe | 16/64 Resistivity,SP,Natural Gamma,Temerature,SPR |
| Res/IP Probe | 16/64 Resistivity,SP,IP |
| Laterolog-3 Resistivity Probe | Laterolog-3 Resistivity |
| Laterlog & Gamma | Laterolog-3 Resistivity,Natural Gamma,SP |
| Three - Component Mangetometer | Magnetic tricomponent |
| Magnetic Susceptibility Probe | Susceptibility |
| Temperature Probe | Temperature |
| Temperature & Fluid resistivity | Temperature, Fluid resistivity |
| Combined Probe | Temperature,Gradient T,Vertex angle,Azimuth |
| Flow Combined Probe | Temperature,Water Level,Flow |

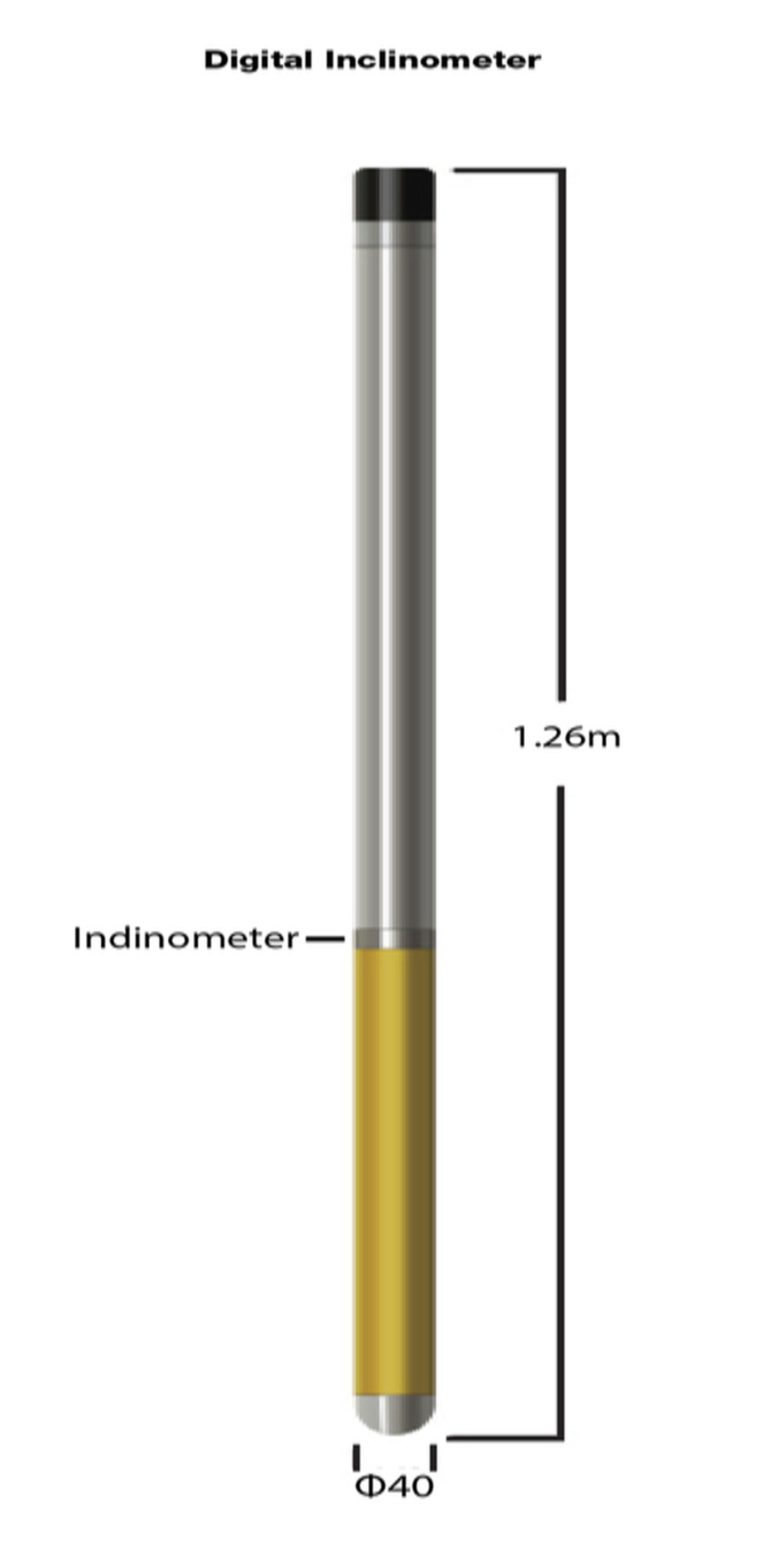

| High Precision Inclination Probe | Vertex angle,Azimuth |
| Three-Arm Caliper | Diameter,Liquid level |
| Sonic Probe | Travel-time,Equation of time,Amplitude1,Amplitude2 |
| Density Probe | Density,Natural Gamma |
| Combined Density Probe | Density,Laterolog Resistivity,Natural Gamma,SP,Caliper |
| Neutron Probe | Porosity |
| Neutron & Gamma Probe | Natural Gamma,Porosity |
Accessories:
External Power Resource
Panasonic Toughbook
Toolbox
Wellheadpulley

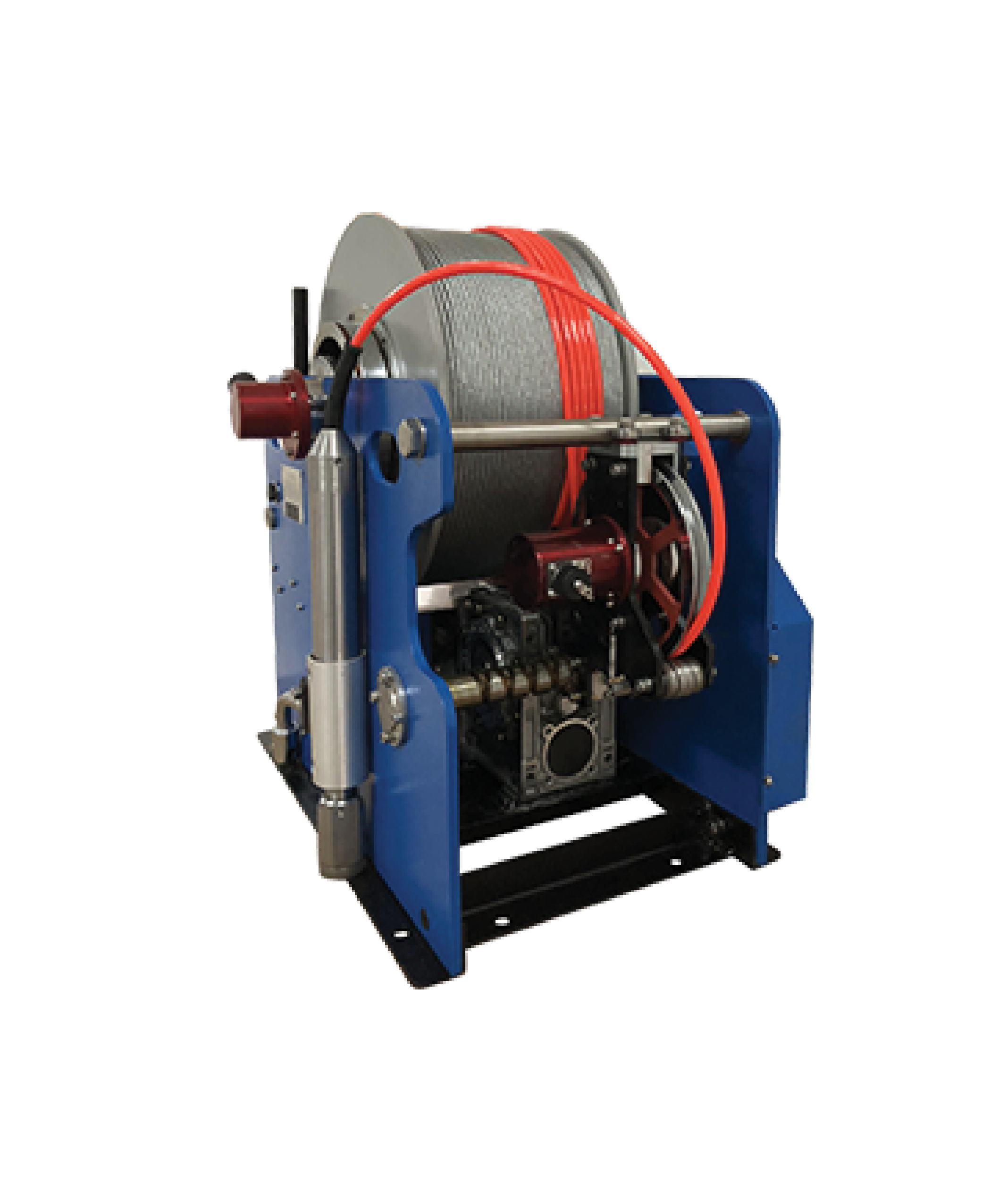

Manual Winch

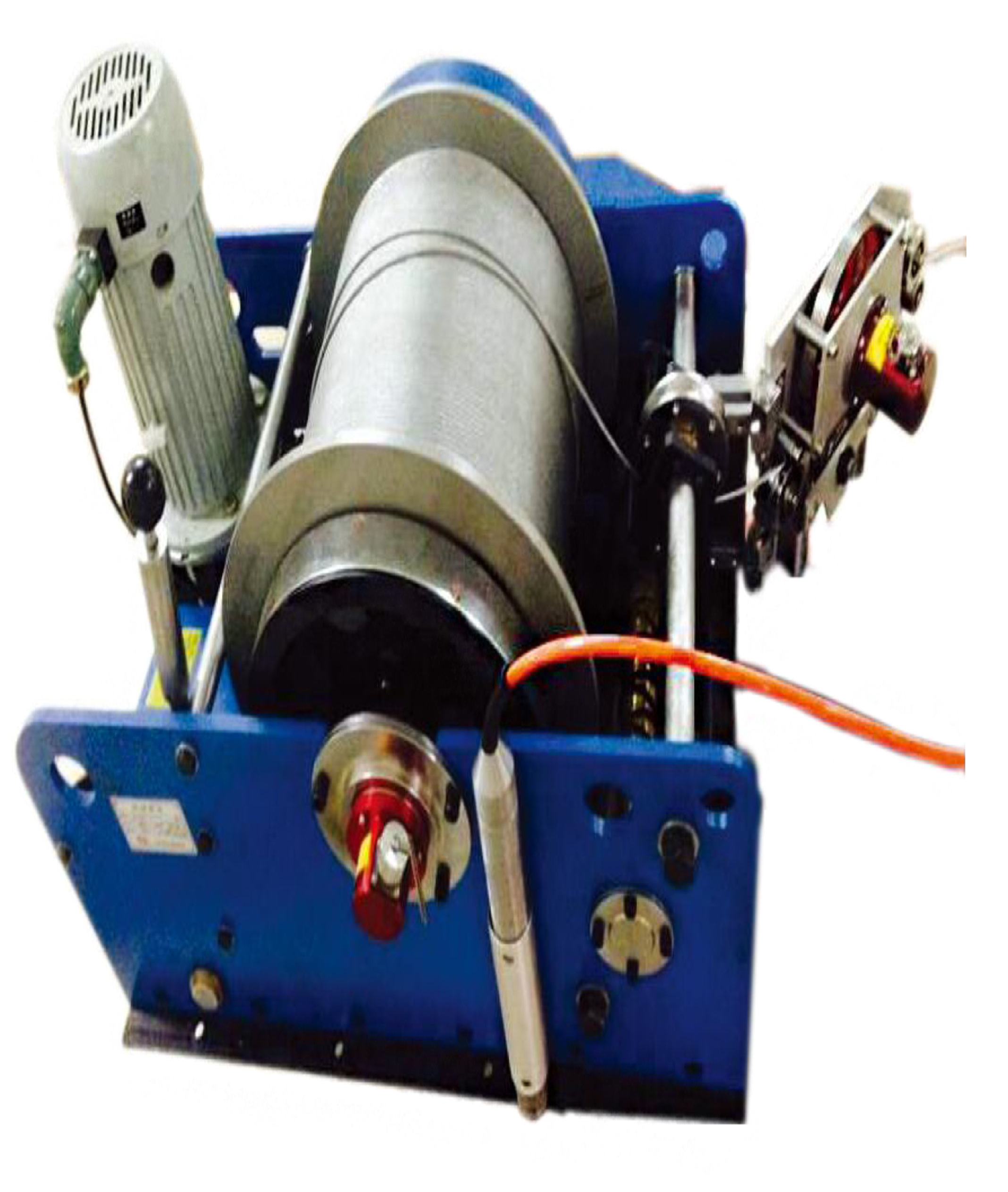

Deep Winch
Portable Winch
Mini Winch

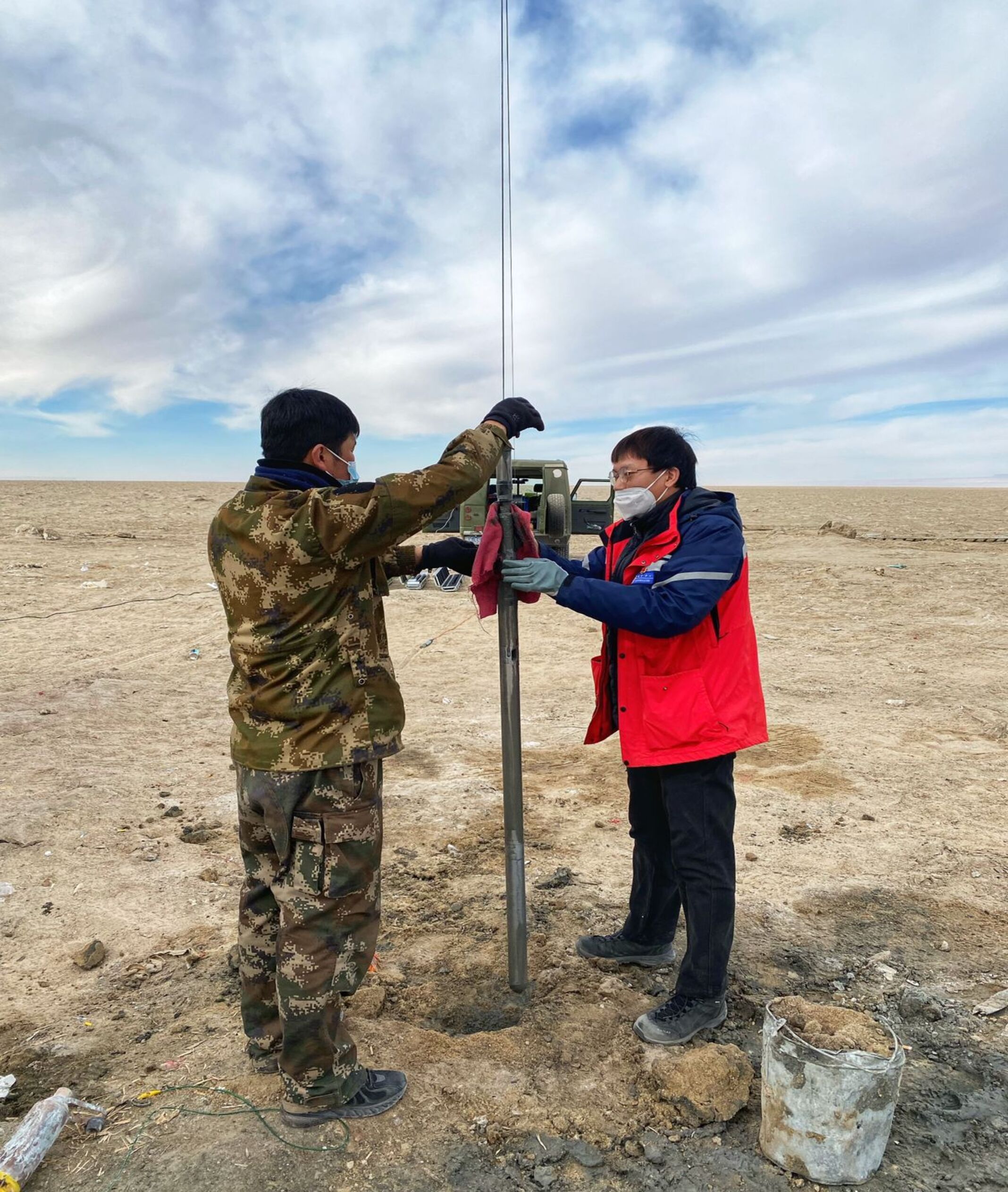

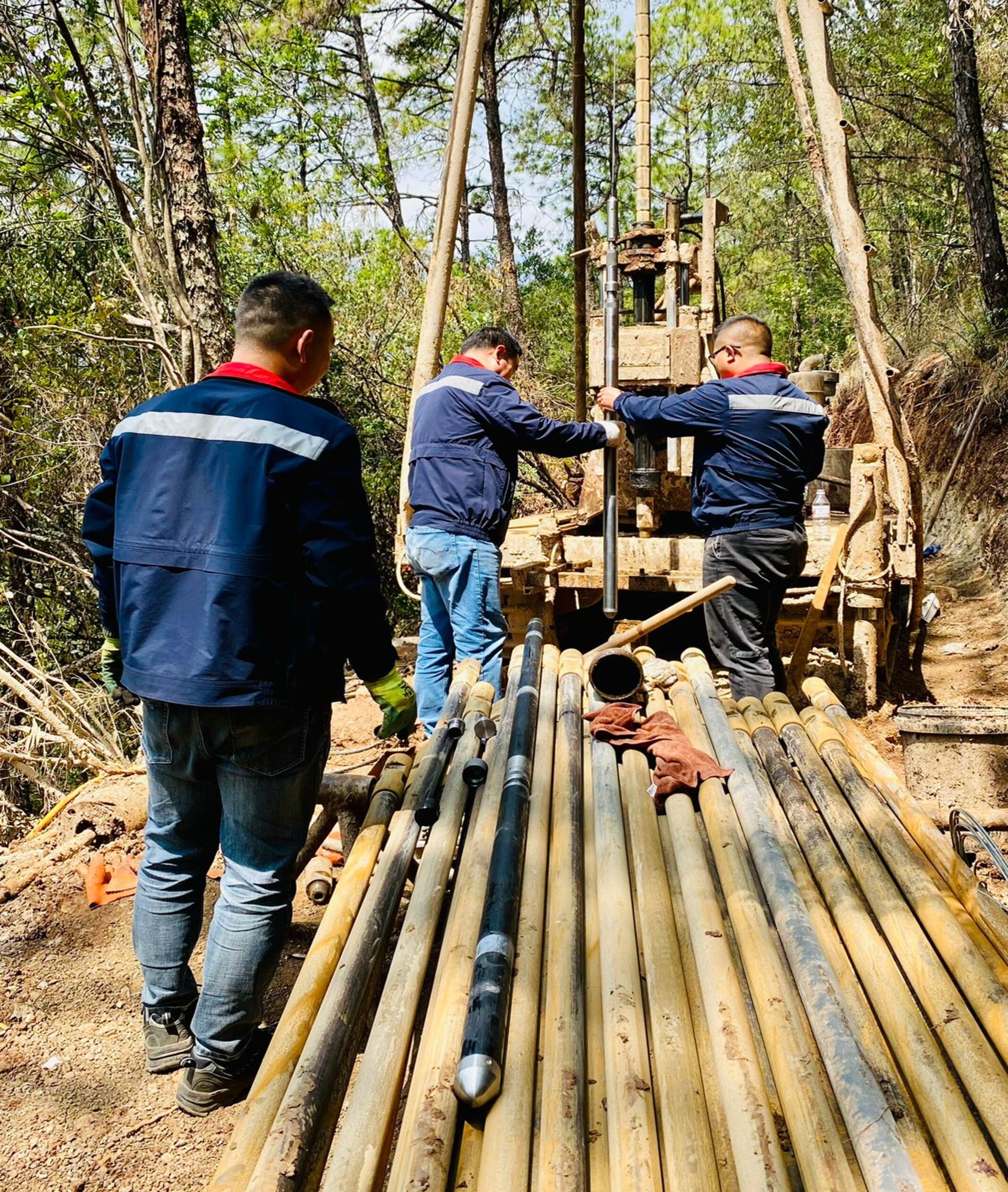

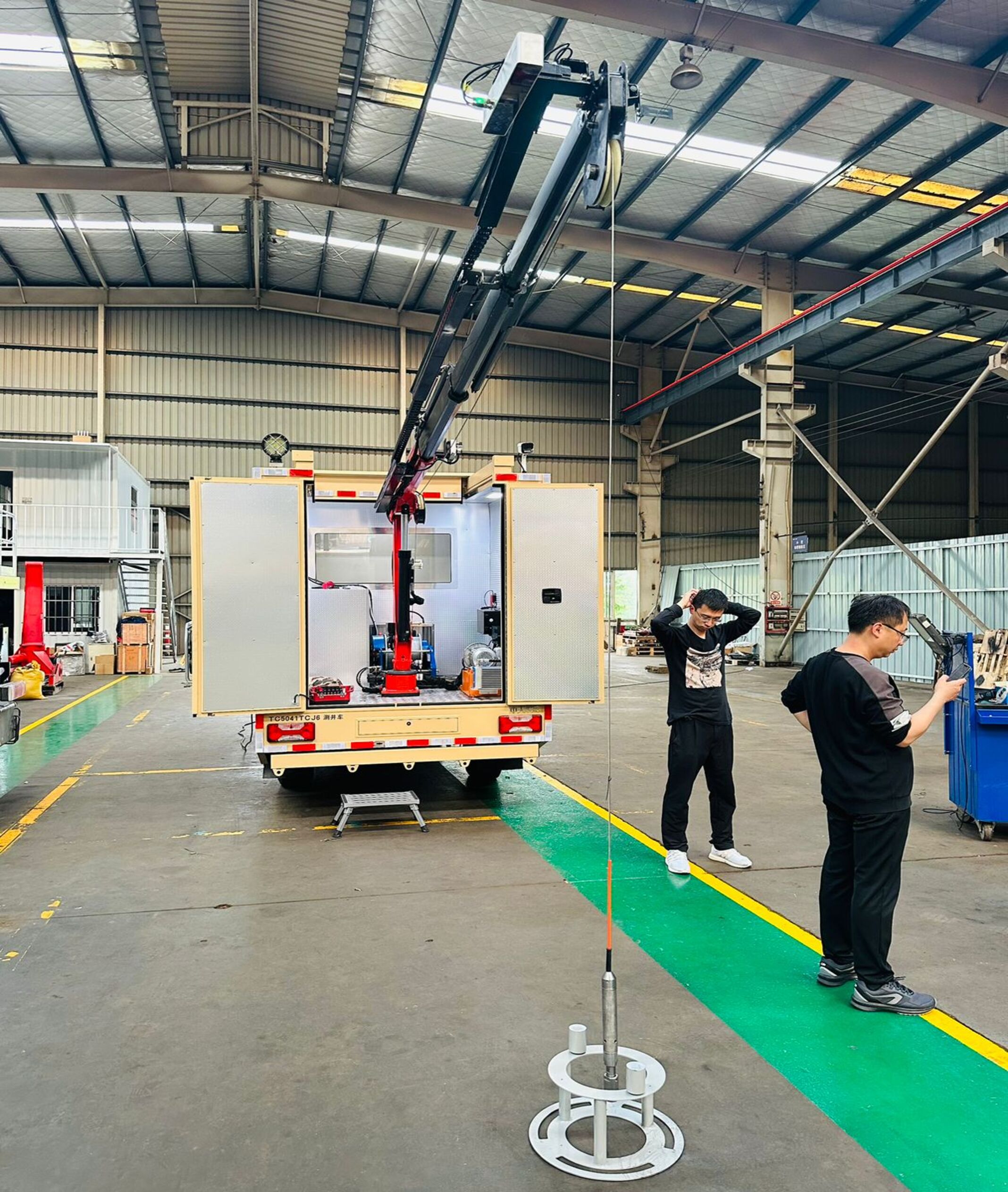

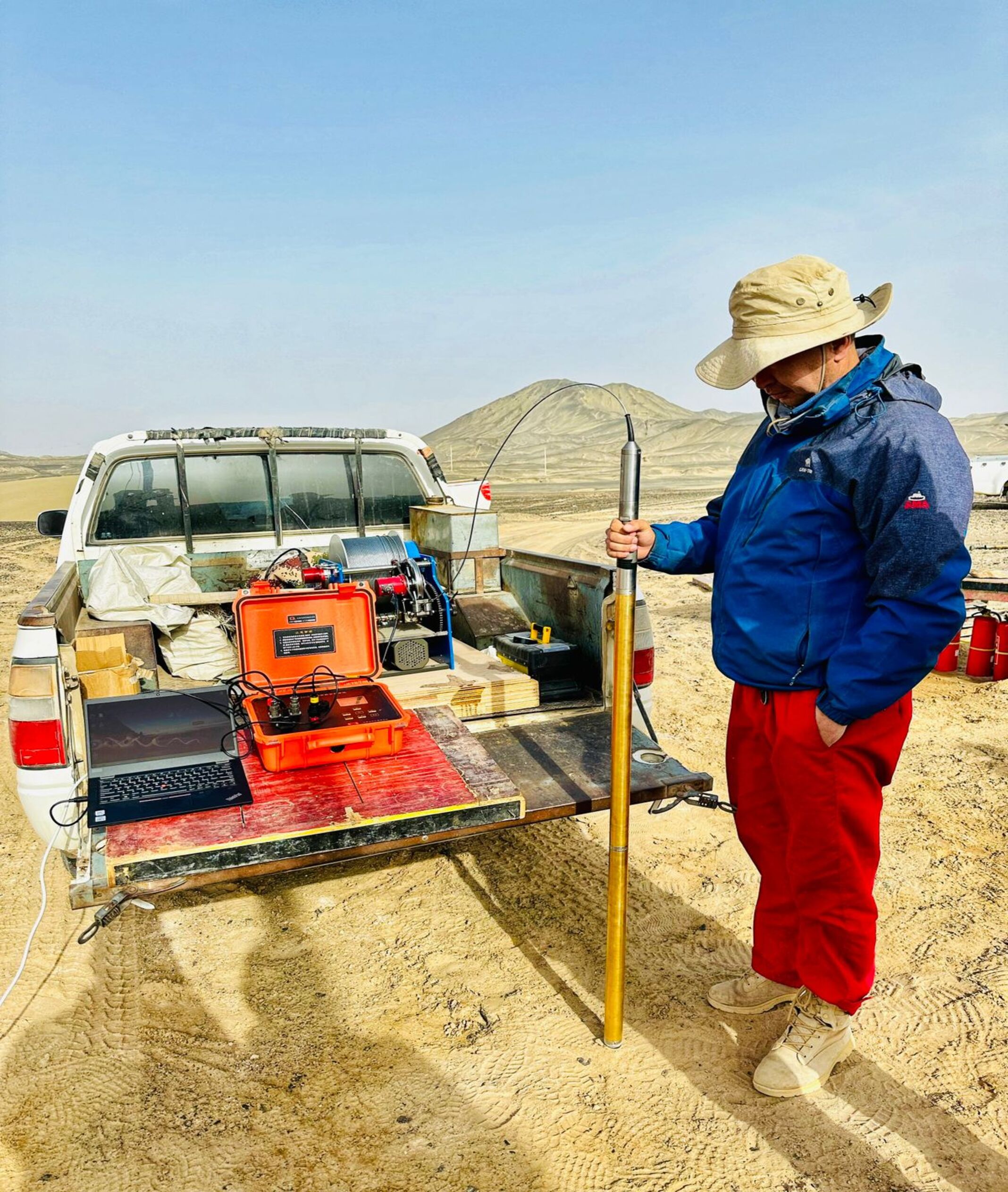

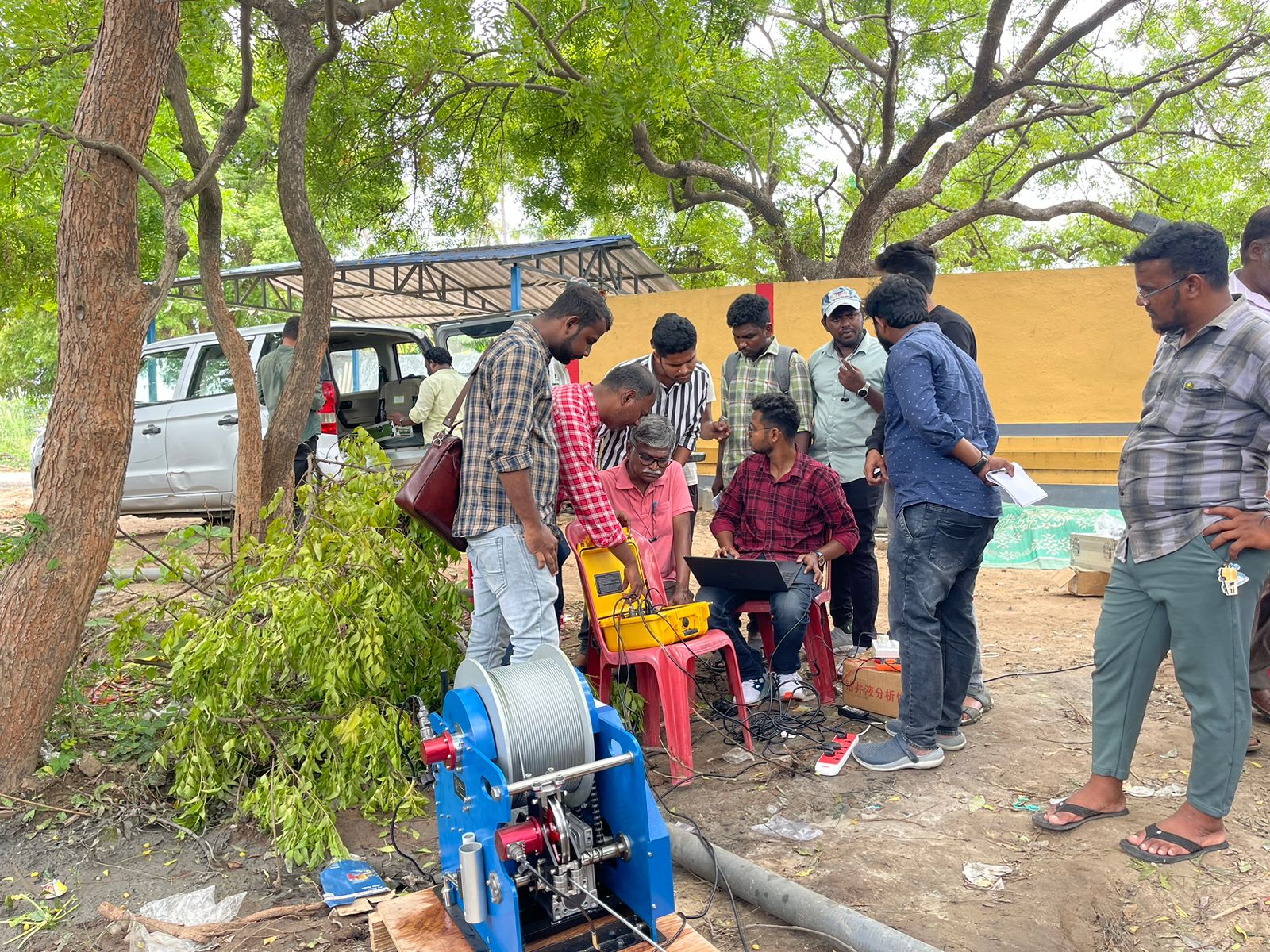

Field Photos:
